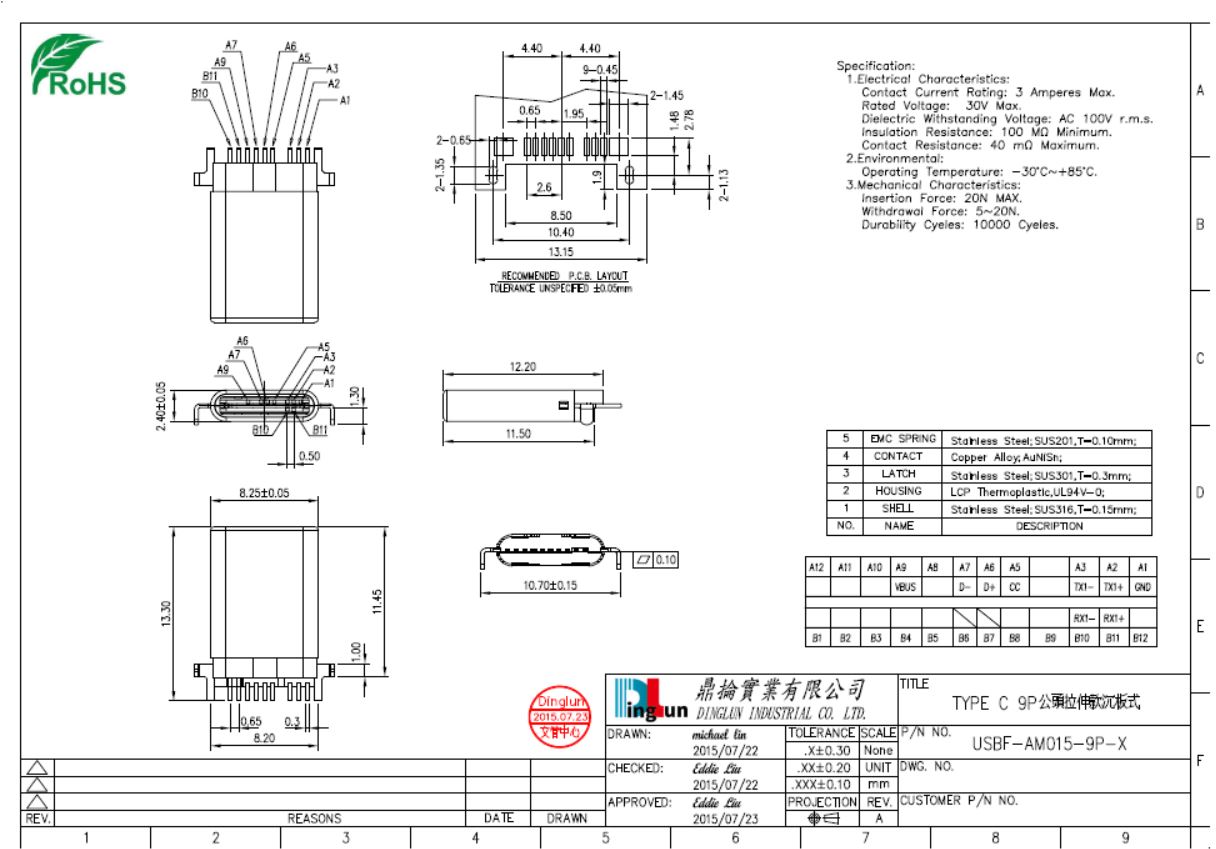

USB 3.1 TYPE C male 9PIN sink board patch SMT two-pin board

Specification:
 1.Electrical Characteristics:
   Contact Current Rating:3 Amperes Max.
   Rated Voltage:30V Max.
   Dielectric Withstanding Voltage:AC 100V r.m.s.
   Insulation Resistance:100 MΩ Minimum.
   Contact Resistance:40 mΩ Maximum.
 2.Environmental:
   Operating Temperature:-30°C ~ +85°C.
 3.Mechanical Characteristics:
   Insertion Force:20N MAX.
   Withdrawal Force:5~20N.
   Durability Cyeles:10000 Cyeles.

USB 3.1 TYPE C male 9PIN sinking board SMT two-pin plug-in board
