USB TYPE C MALE CONNECTOR

USB 3.1 TYPE C male double-row patch 24P sink board 0.95mm two-pin board DIP

USB 3.1 TYPE C male double-row patch 24P sink board 0.95mm two-pin board DIP
Detail

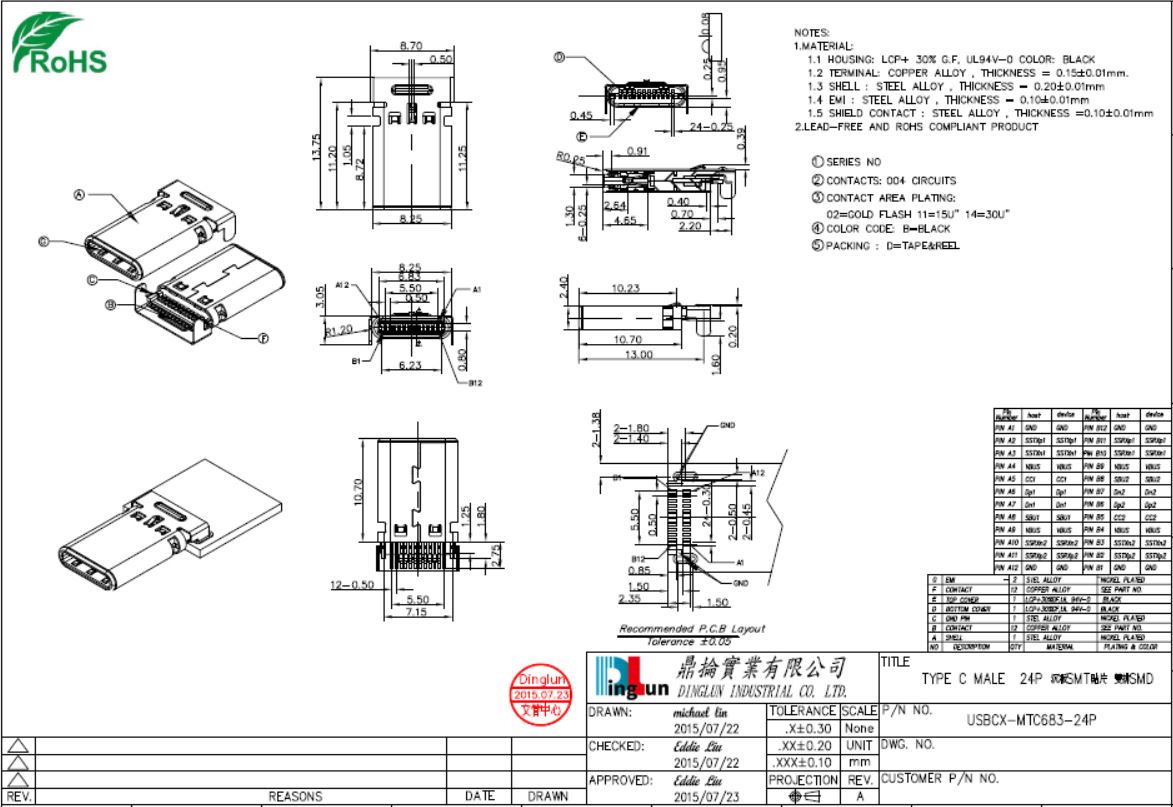

NOTES:
1.MATERIAL:
  HOUSING:LCP+30%G.F,UL94V-0 COLOR:BLACK
  TERMINAL:COPPER ALLOY,THICKNESS=0.15±0.01mm.
  SHELL:STEEL ALLOY,THICKNESS=0.20±0.01mm
  EMI:STEEL ALLOY,THICKNESS=0.10±0.01mm
  SHIELD CONTACT:STEEL ALLOY,THICKNESS=0.1±0.01mm
2.LEAD-FREE AND ROHS COMPLIANT PRODUCT

USB 3.1 TYPE C male double-row patch 24P sink board 0.95mm two-pin board DIP
Product packaging: roll
Product specification: sinking plate 0.95mm
Shell material: SUS304
Plug life: 10000 times
