Specifications:
Electrical:
1.Current Rating:1.5A/contact terminal
2.Voltage Rating:30V DC
3.Contact Resistance:30 milliohms MAX
4.Dielectnic Withstanding Voitage:500V AC AT Sea Levol
5.Lnsulation Resistance:1000MEGA ohms MIN
Mechanical:
1.Cnnector Mate and Unmate Force:Mate force:3.57kgf(MAX)
Unmate force:1.02kgf(MIN)
2.Terminal Retenion:1.0kgf(MIN)
Matorial:
1.Housing:Hing Temperature Tnermaplastics
2.Contact:Copper Alloy C2680
3.Shell:Copper Alloy C2680/SPCC
Finish:
1.Contact:Piated Gold in Mating Area;Tin On Solder Talls
端子四周鍍50U"(MIN)錫,鍍金區域鍍100-200U"鍍金1U"
2.Shell:銅殼四周鍍80U"(MIN)錫 Nickel Plating

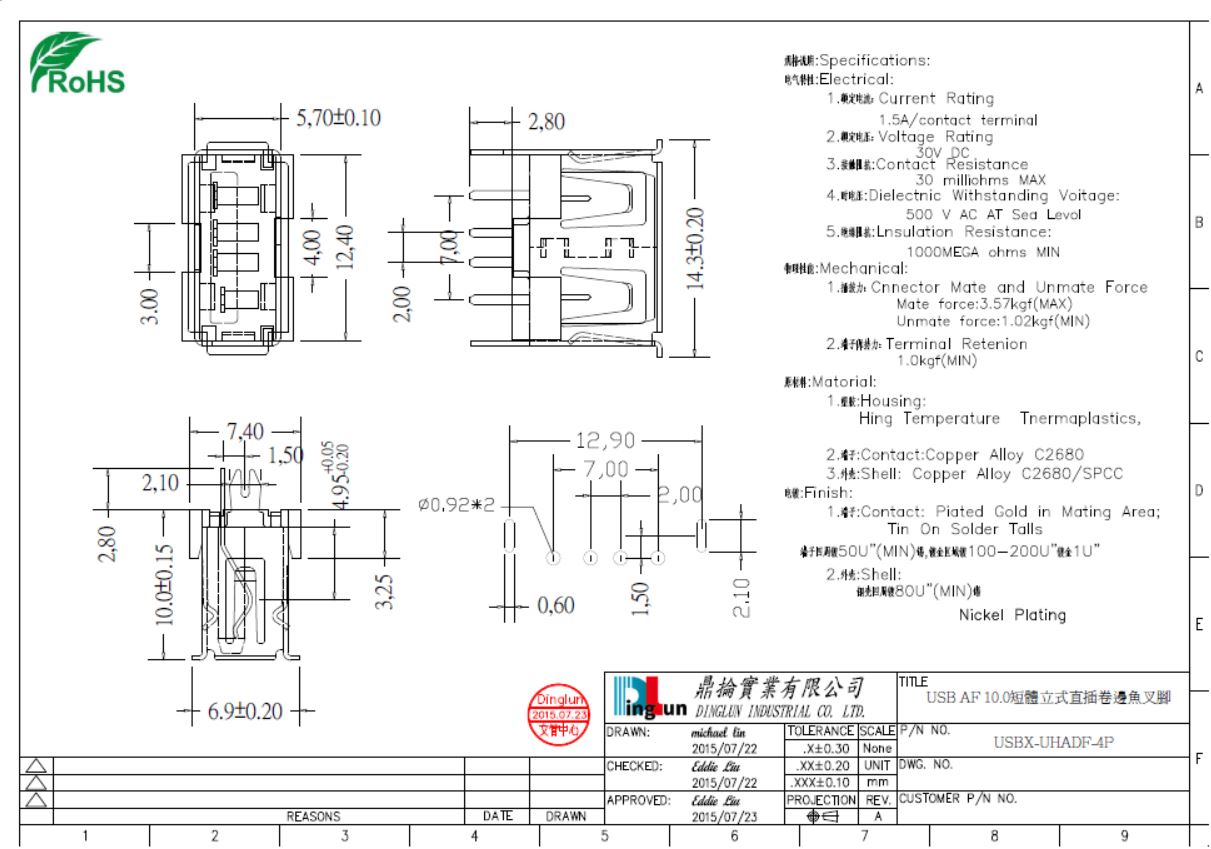

USB 2.0 female socket, direct plug, short body, H=10.0mm, with harpoon feet, black rubber edge
Product specification: H=10.0mmShell material: copper shell
Terminal Material: Copper
Plug life: 10000 times
