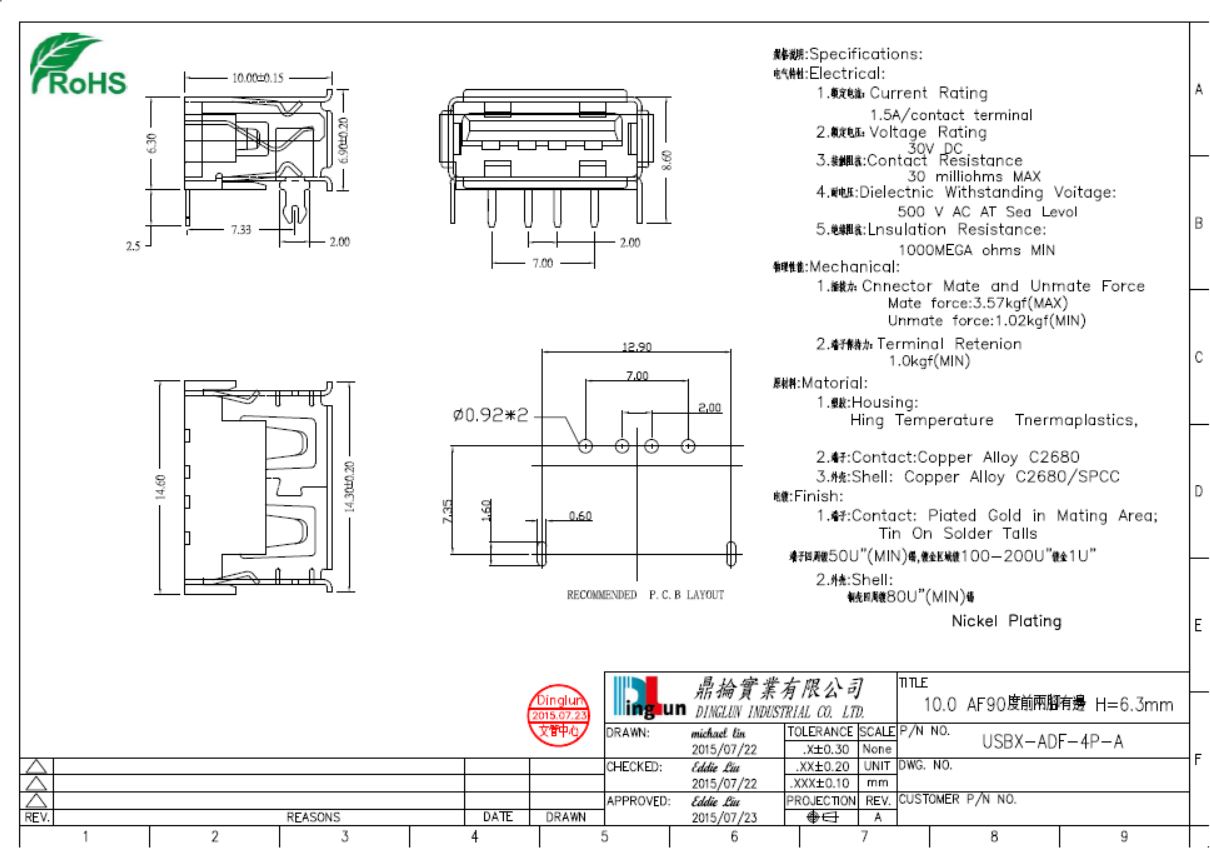

USB 2.0 female socket, 90-degree front two-pin plug-in board, curled short body L=10.0mm

Specifications:
Electrical:
  1.Current Rating:1.5A/contact terminal
  2.Voltage Rating:30V DC
  3.Contact Resistance:30 milliohms MAX
  4.Dielectnic Withstanding Voitage:500V AC AT Sea Levol
  5.Lnsulation Resistance:1000MEGA ohms MIN
Mechanical:
  1.Cnnector Mate and Unmate Force:Mate force:3.57kgf(MAX)
                                                                   Unmate force:1.02kgf(MIN)
  2.Terminal Retenion:1.0kgf(MIN)
Matorial:
  1.Housing:Hing Temperature Tnermaplastics,
  2.Contact:Copper Alloy C2680
  3.Shell:Copper Alloy C2680/SPCC
Finish:
  1.Contact:Piated Gold in Mating Area;Tin On Solder Talls
   The terminals are surrounded by 50U" (MIN) tin plating, and the gold-plated area is plated with 100-200U" gold plating 1U"
  2.Shell: The copper shell is surrounded by 80U" (MIN) tin Nickel Plating

USB 2.0 female socket, 90-degree front two-pin plug-in board, curled short body L=10.0mm
