Specifications:
Electrical:
1.Current Rating:1.5A/contact terminal
2.Voltage Rating:30V DC
3.Contact Resistance:30 milliohms MAX
4.Dielectnic Withstanding Voitage:500V AC AT Sea Levol
5.Lnsulation Resistance:1000MEGA ohms MIN
Mechanical:
1.Cnnector Mate and Unmate Force:Mate force:3.57kgf(MAX)
Unmate force:1.02kgf(MIN)
2.Terminal Retenion:1.0kgf(MIN)
Matorial:
1.Housing:Hing Temperature Tnermaplastics,PBT/LCP White/Black
2.Contact:Copper Alloy C2680
3.Shell:Copper Alloy C2680/SPCC
Finish:
1.Contact:Plated Gold in Mating Area;Tin On Solder Talls
2.Shell:Nickel Plating

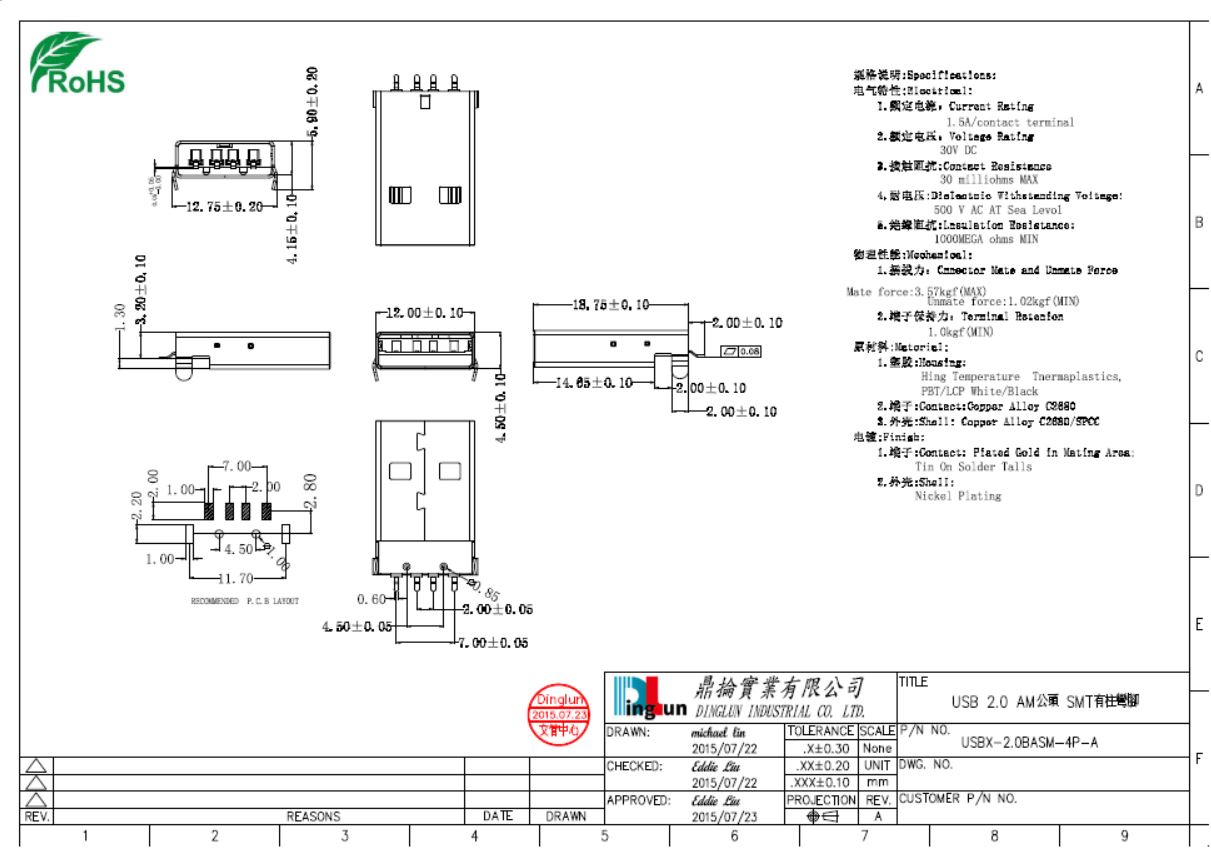

USB 2.0 Male 4P Sinking Plate SMT Bend Pin Board L=18.75mm
Product specification: L=18.75mmPlastic material: LCP
Terminal Material: Copper
