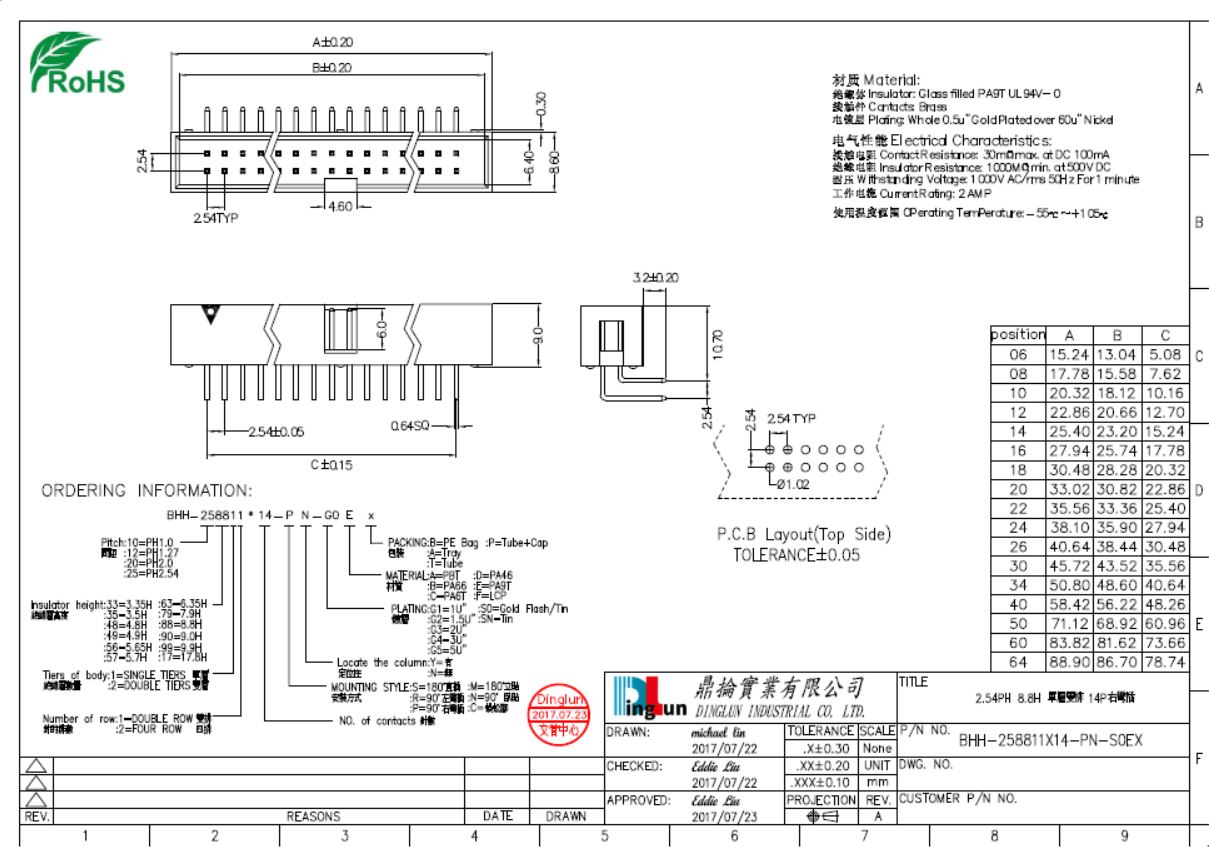

Material:
Insulator:Glass filled PA9T UL94V-0
Contacts:Brass
Plating:Whde 0.5u" Gold Plated over 60u" Nickel
Electrical Characteristics:
Contact Resistance:30mΩ max. at DC 100mA
Insulator Resistance:1000MΩ min. at 500V DC
Withstanding Voltage:1000V AC/rms 50Hz For 1 minute
Current Rating:2 AMP
Operating TemPerature:-55ºC ~ +105ºC
